Haug Tachograph Charts

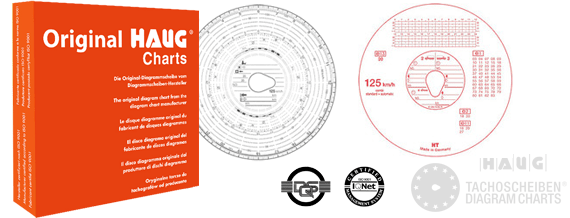

Haug Diagram Charts
Combi diagram charts
Art.-No. Description EC-chart approval
100 100 100 km/h Combi e13 20
125 100 125 km/h Combi e13 20
140 100 140 km/h Combi e13 20
Automatic Tachograph Charts
Art.-No. Description EC-chart approval
100 151 100 km/h Automatic e13 21
125 151 125 km/h Automatic e13 21
125-ASG 125 km/h Automatic Standard Jaeger/Gitac e13 26
140 151 140 km/h Automatic e13 21
180 100 180 km/h Automatic e13 21
Revolution speed measuring tachograph charts
Art.-No. Description EC-chart approval
100 402 100 km/h Automatic 3300 rpm e13 22
125 220 125 km/h Combi 3300 rpm e13 23
125 402 125 km/h Automatic 3300 rpm e13 22
125 604 125 km/h Combi 4000 rpm e13 24
125 406 125 km/h Automatic 4000 rpm e13 25
Special Tachograph Charts
Art.-No. Description
100 724 7 day bundle 100 km/h / 7 Tage Bündel 100 km/h
100 824 8 day bundle 100 km/h / 8 Tage Bündel 100 km/h
100 117 1 day 100 km/h – 26 h / 1 Tag 100 km/h – 26 h
125 724 7 day bundle 125 km/h / 7 Tage Bündel 125 km/h
125 824 8 day bundle 125 km/h / 8 Tage Bündel 125 km/h
125 724 3300 7 day bundle 125 km/h 3300 rpm / 7 Tage Bündel 125 km/h 3300 rpm
125 824 3300 8 day bundle 125 km/h 3300 rpm / 8 Tage Bündel 125 km/h 3300 rpm
125 117 1 day 125 km/h – 26 h / 1 Tag 125 km/h – 26
125 800 1 day 125 km/h – 24 h / 1 Tag 125 km/h – 24 h
160 724 7 day bundle 160 km/h / 7 Tage Bündel 160 km/h
160 M724 7 day bundle 160 km/h Mini / 7 Tage Bündel 160 km/h Mini
160 M24 160 km/h Mini
160 M824 8 day bundle 160 km/h Mini / 8 Tage Bündel 160 km/h Mini
Tachograph approvals numbers
Art.-No. Description
Tachograph approvals numbers
100 100 100 km/h Combi e1: 03/04/07/08/09/10/11/12/15/18/21/22/
23/26/29/30/31/32/35/36/37/40/41/44/
45/46/47/48/53/54/55/56/57/58/59/60/
63/64/65/66/67/68/69/70/72/73/74/75/
78/79/80/81/82/83
 125 100 125 km/h Combi e1: 03/04/07/08/09/10/11/12/15/18/21/22/
23/26/29/30/31/32/35/36/37/40/41/44/
45/46/47/48/53/54/55/56/57/58/59/60/
63/64/65/66/67/68/69/70/72/73/74/75/
78/79/80/81/82/83
    e2: 18/20
    e11: 18/20/27
140 100 140 km/h Combi e1: 37/40/41/44/45/46/47/48/53/54/55/56/
57/60/63/64/66/67/69/70/72/73/74/75/
82/83
    e11: 19/21/26
100 151 100 km/h Automatic e1: 23/26/31/32/37/40/45/46/55/56/57/60/
63/64/69/70/72/73/74/75/78/79/82/83
125 151 125 km/h Automatic e1: 23/26/31/32/37/40/45/46/55/56/57/60/
63/64/69/70/72/73/74/75/78/79/82/83
    e2: 18/20
    e11: 18/20/27
125-ASG 125 km/h Automatic Standard Jaeger/Gitac e2: 01/02/03/04/05/06/07/08/09/10/11/12/
13/14/15/16/17
    e11: 01/03
140 151 140 km/h Automatic e1: 37/40/45/46/55/56/57/60/63/64/69/70/
72/73/74/75/82/83
    e11: 19/21/26
180 100 180 km/h Automatic e1: 57/60/72/73/82/83
    e2: 24
    e11: 24/25
100 402 100 km/h Automatic 3300 rpm e1: 24/25/38/39/51/52/61/62/71/76/77/85
125 220 125 km/h Combi 3300 rpm e1: 13/14/16/17/24/25/27/28/33/34/38/39/
42/43/ 49/50/51/52/61/62/71/76/77/85
    e2: 19/21
125 402 125 km/h Automatic 3300 rpm e1: 24/25/38/39/51/52/61/62/71/76/77/85
    e2: 19/21
    e11: 20
125 604 125 km/h Combi 4000 rpm e1: 13/14/16/17/24/25/27/28/33/34/38/39/
42/43/49/50/51/52
125 406 125 km/h Automatic 4000 rpm e1: 24/25/38/39/51/52
